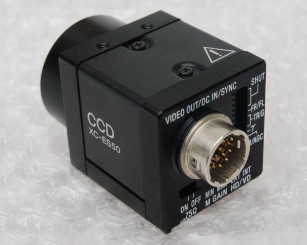

The XC-E Series are compact, lightweight one-piece black and white cameras incorporating the latest 1/2 and 1/3 type Interline (IT) CCD which produces new levels of picture detail.

With dimensions of 29 x 29 x 32 mm, these cameras can easily be installed in places where installation was previously difficult for other larger cameras.

? 1/2 type IT CCD

? Compact and light weight: 29 (W) x 29 (H) x 32 (D) mm, 50 g

? Minimum illumination at F1.4: 0.2 lx

? High S/N Ratio: 60 dB

? Electronic shutter function: 1/100 to 1/10,000 s: EIA, 1/120 to 1/10,000 s: CCIR

? Flexible trigger shutter function

? Scanning system: 2:1 interlaced

? Frame/field exposure

? Restart/reset function

? Synchronization: internal/external (HD/VD)

? High shock and vibration tolerance
